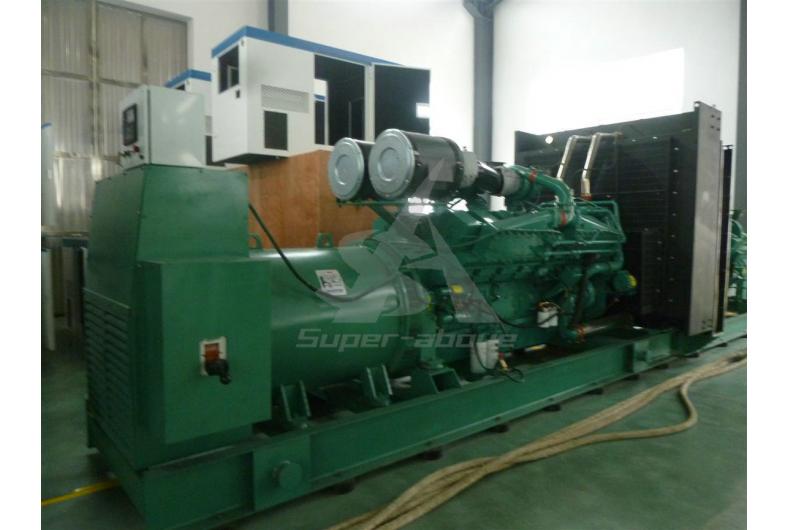

Naked in Container 1200kw Diesel Generator with Canopy
Diesel generator Details
1200kw/1500kva
Product Description
Configuration Spec.
1) Powered by brand new original water cooled diesel engine.
2) Brand new STAMFORD, LEROY SOMER or GENLITEC single bearing 3 phase alternator with IP23 and H insulation class.
3) Original 50ºC radiator with engine driven fan mounted on skid.
4) Delixi or Chint branded case circuit breaker mounted.
5) Heavy-duty fabricated steel based frame with built-in fuel tank for at least 8 hours continuous running.
6) Complete set mounted on a based frame with anti-vibration mountings.
7) Industrial 9 dB muffler exhaust system with blexible connects and bellows.
8) Based frame with fuel, oil and coolant drain cocks for easy maintenance.
9) 12/24V DC electric start system with free maintain battery & smartgen brand battery charger.
10) Set mounted automatic control panel, with SMARTGEN brand AMF controller module for automatic start & stop.
11) Test report of generator, set of drawings and manuals.
12) CE, ISO9001 approved
Model
CLK-1200GF
Power
Frequency
50Hz/60Hz
Voltage
4000/230v(voltage can be customized)
Optional Type
Open/soundproof/trailer
Size of Open type
5600*2150*2600mm
Weight of Open type
11000kg
With Diesel Engine
Brand&model
KTA50-GS8
Standby Power
1429kw
Cylinders
16 in V arrangement
Bore*Stroke
159*159mm
Displacement
50L
Lubrication Oil Capacity
204L
Fuel Consumption at 100% Load
205g/kw.h
Speed Governor
Electronic
With Alternator
Optional Brands
Stamford/Leroy Somer/Mecc Alte/Marathon
Exciter type
Single bearing,brushless,Self-excited
Power factor
0.8
Voltage adjust range
≥5%
Insulation Grade
H
Protection Grade
IP23
With Controller
Optional brands
Deepsea/ComAp/Smartgen
